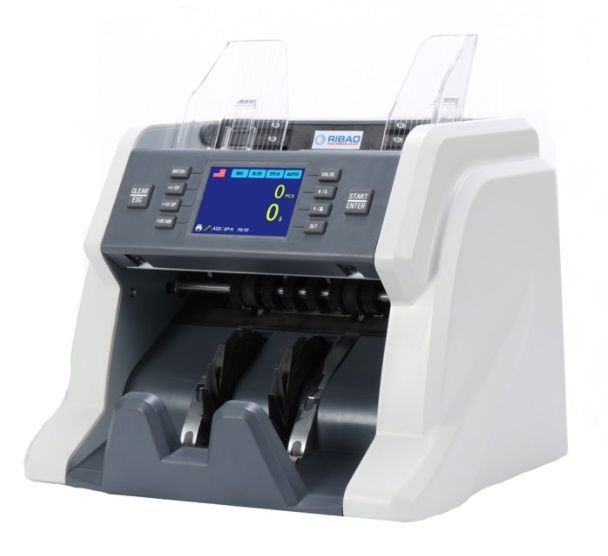

Ribao BC-40 MIX Value Counting Machine (4 Currencies)
- Accurate Counting: 4 Currencies (AED / USD / EUR / OMR)
- A 3.5 inch TFT Screen
- Multi–currency Capability
- Reliable Counterfeit Detection.
- The software can be updated through a USB memory stick, PC interface or online.
- The firmware software can be developed based on the data collected in field through a USB or LAN port.
- Jam Removal and Sensor Cleaning
Ribao BC-40 is new developed, most cost-effective solution for value counting and detection.It is a perfect solution for retail customer and bank front desk.
Hopper Capacity | 600 pcs |
| Stacker Capacity | 200 pcs |
| Currency Support | 4 Currencies (AED / USD / EUR / OMR) |
| Display | Color TFT-LCD (3.5 inch),Touch Screen |
| Suitable Note Size | Length: 100mm~175mm |
| Width: 50mm~90mm | |
| Suitable Note Thickness | 0.05mm~0.12mm |
| Speed (pcs / min) | 800,1000,1200 (SDC MIX mode) |
| 1500 (CNT mode) | |
| Connectivity | USB for data collection and software upgrade |
| RS232 for PC communication | |
| RJ 12 for external display | |
| Counterfeit Detection | Ultraviolet detection (UV) |
| Magnetism detection (MG) | |
| Metal thread detection (MT) | |
| Infrared image detection (IR) | |
| CIS image detection (single side) | |
| Counting modes | Piece counting (CNT) |
| Value counting（SDC, MIX） | |
| Auto recognition | |
| Multi-currency mix counting | |
| Batch (5-200) | |
| Accumulation | |
| Language Support | Different language for user's selection |
| Power Supply | AC 220V 50Hz ±10% |
| AC 110V 60Hz ±10% |
Compact: It is portable and takes up less space for cashiers.
Accurate Counting: Excellent performance counting both brand new and worn out notes.
TFT Screen: A 3.5 inch TFT touch screen allows for greater visibility.
Multi–currency Capability: Support 4 currencies (AED / USD / EUR / OMR)
Reliable Counterfeit Detection: Single CIS provide R\B\G\IR images for detection. It can detect the notes by UV, MG, MT, IR, CIS and serial number.
User Friendly Interface: Very easily understandable menu and interface makes the operation more smooth, customized interface offers more options according to preference.
Software Updates: The software can be updated through a USB memory stick, PC interface or online.
FW developing: The firmware software can be developed based on the data collected in field through a USB or LAN port.
Jam Removal and Sensor Cleaning: It is easy to open the passage from the rear side to clear jammed notes and clean the sensors.
Packing Details
| Machine Dimensions (WxDxH) | 287 (H) x 240 (W) x 232 (D) mm |
| Net Weight | 5.9kg |
| Transportation Packing | 2units/carton |
| Transport Carton Dimension | 380 (H) x 650 (W) x 350 (D) mm |
| Gross Weight/carton | 16kg |
| Manufacturer | Ribao |
|---|---|
| Product Code | BC-40 |
